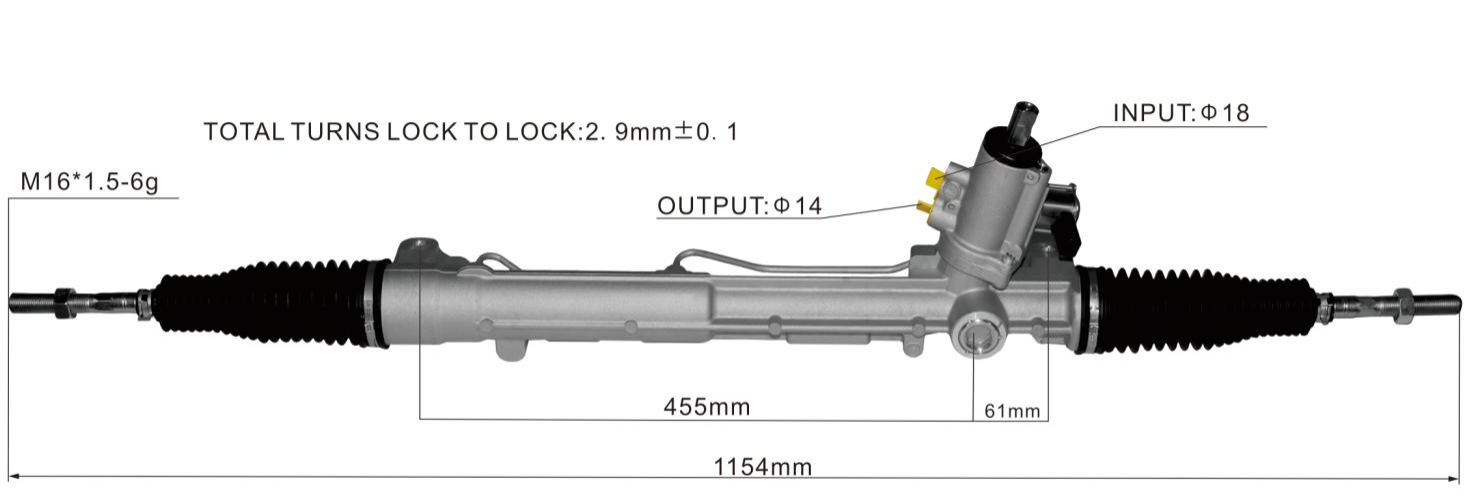

Audi Q5 Electric Hydraulic Power Steering Rack

Audi Q5 — Electric-Hydraulic Power Steering Explained

This steering rack for the Audi Q5 uses electric-hydraulic power steering (E-HPS) technology, a hybrid system that combines the road feel of traditional hydraulic steering with the efficiency of an electric motor. Unlike fully hydraulic systems that use an engine-driven pump, the E-HPS system uses an electric motor to drive the hydraulic pump, which only runs when steering assist is actually needed. This results in reduced fuel consumption compared to conventional hydraulic systems while maintaining the progressive, weighted steering feel that Audi drivers expect. The OE numbers for this unit are 8RD422065, 8R1422065G, and 8RD422065A — all referring to the same physical rack with different revision codes.

E-HPS vs EPS vs Traditional Hydraulic — What Q5 Owners Should Know

The Audi Q5 uses the E-HPS system rather than a fully electric power steering (EPS) system found in many modern vehicles. The distinction matters for replacement: an EPS system has the electric motor built into the steering column and uses no hydraulic fluid at all, while the E-HPS system retains hydraulic fluid, hoses, and a reservoir — the electric motor simply replaces the engine-driven pump. This means that when replacing an E-HPS steering rack on the Q5, you still need to bleed the hydraulic system and check the fluid level, just as with a traditional hydraulic rack. The advantage of E-HPS over pure hydraulic is that the electric motor can be precisely controlled by the vehicle's ECU to vary assist levels based on speed, providing lighter effort at parking speeds and firmer feel at highway speeds.

Common Failure Modes on Audi Q5 E-HPS

The Audi Q5 E-HPS steering rack has two distinct failure patterns that differ from traditional hydraulic racks. First, the electric motor itself can fail — symptoms include complete loss of power steering assist while the engine is running, often accompanied by a steering warning light on the dashboard. This is an electrical fault, not a hydraulic one, and requires motor replacement rather than rack replacement. Second, the hydraulic components of the rack (seals, valve body, rack bar) can wear out just like a traditional rack — symptoms include fluid leaks, steering play, and a heavy or inconsistent steering feel. Our replacement rack addresses the hydraulic failure mode; if your electric motor is still functioning correctly, this rack will restore proper steering performance.

Multiple OE Numbers — One Part

The three OE numbers 8RD422065, 8R1422065G, and 8RD422065A all refer to the same steering rack at different stages of Audi's revision history. The "8R" prefix identifies the Q5 platform (Type 8R), "D" indicates the steering system group, and the suffix letters denote engineering revisions. Earlier Q5 models (2009-2012) may carry the 8RD422065 base number, while later production vehicles (2013-2017) typically show 8R1422065G or 8RD422065A. All three are physically and functionally identical — our rack replaces any of them as a direct bolt-on fit. Always cross-reference with your vehicle's VIN through an Audi parts database if you want absolute certainty before ordering.

Q5 E-HPS System Service Requirements

Servicing the E-HPS steering system on the Audi Q5 requires some specific considerations that don't apply to conventional hydraulic systems. The system uses Audi-specific hydraulic fluid (CHF 202, part number G 004 000 M2) and the reservoir has a built-in filter that should be replaced at every fluid change. After installing a new rack, the system must be bled with the electric motor running — this requires either a diagnostic tool to activate the motor or simply turning the ignition on (engine off) and cycling the steering lock to lock while monitoring fluid level. The Q5's electric motor runs a self-test at ignition-on, so you'll hear it briefly spin up even without starting the engine. If the motor does not activate during this self-test, check the electrical connector and fuse before suspecting a motor fault.

ADAS and Steering Angle Sensor Considerations

Later model year Audi Q5 vehicles (2013+) may be equipped with Advanced Driver Assistance Systems (ADAS) including lane departure warning and adaptive cruise control. These systems rely on the steering angle sensor for correct operation. After replacing the steering rack, the steering angle sensor must be recalibrated using Audi's diagnostic system (ODIS or compatible third-party tool). Failure to recalibrate will result in ADAS malfunction warnings and potentially disable the electronic stability program (ESP). Budget for a dealer visit or mobile calibration service if you do not have access to Audi diagnostic equipment.

KITLAMT — Modern Steering Technology

As vehicles transition from hydraulic to electric and hybrid steering systems, KITLAMT has invested in E-HPS and EPS product development to serve the growing aftermarket demand. Our Audi Q5 E-HPS racks are manufactured with electronically controlled valve assemblies and tested on our proprietary E-HPS simulation bench that replicates real-world driving conditions. With over 200 electric-hydraulic steering SKUs covering Audi, BMW, Mercedes-Benz, and Volvo, KITLAMT is at the forefront of modern steering technology in the aftermarket.
