Volkswagen Passat / Audi A4 Power Steering Rack 1998-2005

Two Cars, One Steering Rack — VW Passat B5 and Audi A4 B5

Here is a fact that surprises many workshop owners: the Volkswagen Passat B5 (1997-2005) and the Audi A4 B5 (1997-2001) share the same steering rack. Both vehicles are built on the Volkswagen Group B5 platform (also known as PL45), and despite their different brand badges and price points, the steering system is identical. This hydraulic steering rack (OE 8D1422066M and 3B1422052L) fits both vehicles as a direct replacement. For parts distributors, this dual compatibility means one SKU covers two popular vehicle models, simplifying inventory management and increasing stock turnover.

Understanding the Dual OE Numbers

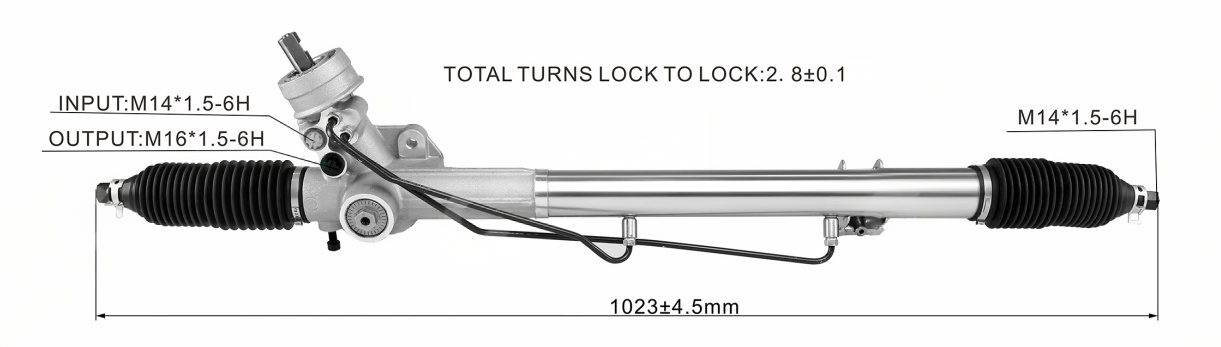

The two OE numbers — 8D1422066M and 3B1422052L — reflect the different part numbering systems used by Audi and Volkswagen for the same physical component. The "8D" prefix in 8D1422066M is Audi's code for the B5 A4 platform, while the "3B" prefix in 3B1422052L is Volkswagen's code for the B5 Passat platform. Both numbers point to the same steering rack with identical dimensions, mounting points, valve calibration, and hydraulic specifications. If a customer brings in a Passat with 3B1422052L stamped on the rack, ordering 8D1422066M (or vice versa) will deliver the exact same part.

The B5 Platform's Reputation for Steering Issues

The VW Passat B5 and Audi A4 B5 have earned a reputation in the independent repair community for steering system problems, and it is largely deserved. The B5 platform was Volkswagen's first major attempt at sharing a "premium" platform between VW and Audi, and the steering rack design reflected some cost-engineering decisions that affected long-term durability. The internal valve body uses a rotary valve design with tighter tolerances than earlier VW platforms, making it more sensitive to fluid contamination. Additionally, the rack boots on B5 models are positioned close to the exhaust downpipe, causing accelerated rubber degradation from heat exposure. Many B5 Passats and A4s need their first steering rack replacement between 100,000 and 150,000 km — earlier than owners of simpler VW models like the Golf typically experience.

1.8T Engine Models — Extra Attention Required

The 1.8T turbocharged engine was the most popular powerplant in both the B5 Passat and B5 A4. These models require extra attention during steering rack replacement because the turbocharger plumbing and heat shielding create additional obstacles around the steering rack area. The power steering pressure line routing on 1.8T models passes very close to the turbocharger heat shield, and the line must be carefully repositioned during installation to prevent heat damage. Additionally, the 1.8T engine produces more vibration than naturally aspirated variants, which can accelerate wear on the steering rack mounting bushings. Inspect these bushings during replacement and renew them if any cracking or compression is visible.

W8 and V6 Models — Heavy-Duty Application

The rare Volkswagen Passat W8 (2001-2004) and the Audi A4 2.8L V6 also use this same steering rack, but these heavier, more powerful vehicles put significantly more stress on the steering system. W8 Passat owners in particular report shorter rack life due to the vehicle's substantial weight (1,775 kg) and the wide 225/45R17 tires fitted as standard. If you are replacing the rack on a W8 or V6 model, we recommend using only new (not remanufactured) units and checking the power steering pump output pressure at the same time — a weakened pump on these heavy vehicles can cause the new rack to operate outside its design parameters.

Alignment Specifications for B5 Platform

After replacing the steering rack on a VW Passat B5 or Audi A4 B5, the four-wheel alignment must be performed to the following specifications: Front toe — 0°00' ± 10' (total toe, both wheels). Front camber — -0°30' ± 30'. Front caster — 7°30' ± 30' (Passat) or 7°45' ± 30' (A4). Rear toe — 0°10' ± 10' per wheel. Rear camber — -1°15' ± 30'. These are the factory specification values — some alignment shops use slightly different target values based on driving preference. The critical measurement is front toe, which must be set precisely to prevent the characteristic B5 wandering and tire feathering that occurs when toe is even slightly out of specification.

KITLAMT — Cross-Platform Parts Expertise

KITLAMT specializes in identifying and manufacturing steering components that serve multiple vehicle applications within the Volkswagen Group platform-sharing strategy. Our catalog includes over 300 cross-platform steering racks that fit two or more vehicle models, helping parts distributors reduce inventory complexity while maximizing vehicle coverage. Every KITLAMT rack comes with a detailed application chart listing all compatible vehicles, engine codes, and production date ranges. Based in Guangzhou with 12 years of export experience to 50+ countries.
