Audi A4 Power Steering Rack 2001-

Audi A4 B6 Platform Application

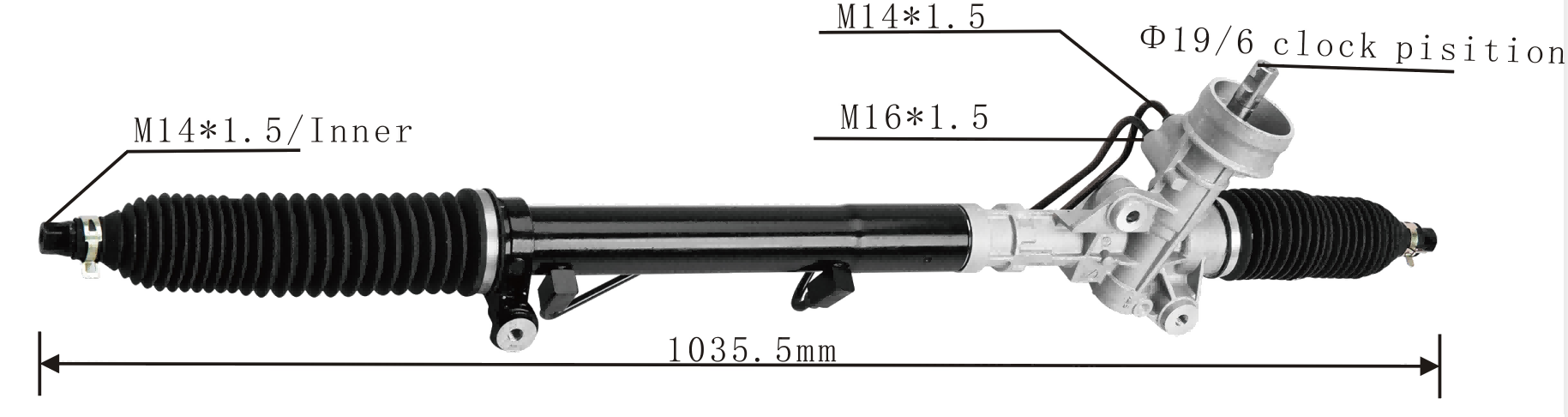

This hydraulic power steering rack (OE 8E1422052) is engineered for the Audi A4 B6 platform (also designated 8E internally by Audi), produced from 2001 to 2005. The B6 A4 was offered with a range of engines from the 1.8T turbocharged four-cylinder to the 3.0L V6, and this steering rack fits all gasoline variants. Diesel models (1.9 TDI, 2.5 TDI V6) use the same rack. The 8E platform also underpins the Audi Avant (wagon) and the Audi Cabriolet, all of which accept this rack. Left-hand drive (LHD) configuration only — right-hand drive UK models require a different part number.

Understanding Audi's 8E Part Number System

Audi's part numbering system differs from Volkswagen's despite the two brands sharing parent company and platforms. The "8E" prefix in 8E1422052 identifies the B6 A4 platform specifically, distinguishing it from the earlier B5 platform (8D prefix) and the later B7 platform (8E with different suffix codes). The "422" group code is shared across all VW Group steering components, while "052" identifies this particular rack variant. Confusing B5 and B6 steering racks is a common mistake — the B5 (1997-2001) uses a completely different mounting system and is NOT interchangeable with this B6 unit.

Why Audi A4 B6 Steering Racks Develop Play

The Audi A4 B6 is known for developing steering play and a vague, imprecise feeling at highway speeds as it accumulates mileage. This is primarily caused by wear in two areas of the steering rack: the rack bar itself develops microscopic scoring where the piston seal rides, allowing fluid to bypass and reducing assist precision; and the inner tie rod ball joints develop looseness that translates directly to wheel movement without corresponding steering input. Unlike some vehicles where only the tie rods need replacement, the B6 A4 typically needs both the rack and inner tie rods replaced simultaneously for a proper repair. KITLAMT racks ship with new inner tie rod boots pre-installed; inner tie rods are available separately.

Quattro vs Front-Wheel Drive Considerations

The Audi A4 B6 was available in both front-wheel drive (FWD) and quattro all-wheel drive (AWD) configurations. Fortunately, the steering rack is identical between FWD and quattro models — the AWD system only affects the drivetrain below, not the steering mechanism. However, quattro models have slightly less clearance around the steering rack due to the front differential and driveshafts. Some technicians find it easier to remove the rack from above (through the engine bay) on quattro models rather than from below as on FWD cars. Either way, the same 8E1422052 rack fits both configurations.

Power Steering Fluid Specification for Audi B6

The Audi A4 B6 platform requires CHF 11S hydraulic fluid (Audi/VW part number G 004 000 M2) for the power steering system. This is a mineral-based hydraulic fluid with specific low-temperature viscosity properties that ensure proper steering assist in cold climates. Do NOT use Dexron ATF or universal power steering fluid in the B6 A4 — the seal materials in the steering rack and pump are designed for CHF 11S compatibility, and using incorrect fluid will cause premature seal failure. If your system has been previously filled with incorrect fluid, a complete system flush before rack replacement is absolutely essential.

Professional Installation Tips

The Audi A4 B6 steering rack replacement requires specific steps that differ from simpler platform vehicles. First, the subframe must be lowered approximately 50mm on the driver's side to create clearance for rack extraction — this involves loosening (not removing) four subframe bolts. Second, the steering column connection uses a double-cardan joint that must be carefully separated without damaging the column boot. Third, the power steering pressure line uses a banjo bolt with two crush washers — both washers MUST be replaced with new ones during reassembly to prevent high-pressure leaks. Finally, the B6 A4 requires a dealer-level diagnostic tool (VCDS/VAG-COM) to reset the steering angle sensor after rack replacement, or the ESP warning light will remain illuminated.

KITLAMT — Premium European Steering Solutions

KITLAMT specializes in steering system components for premium European vehicles including Audi, BMW, Mercedes-Benz, and Volkswagen. Our Guangzhou factory uses the same grade of 40Cr steel alloy and Japanese-sourced seal kits found in OE supplier factories. Every Audi A4 steering rack is individually serialized with a QR code linking to its test certificate, providing full traceability from our factory to your workshop. Available for worldwide export with 12-month warranty and multilingual technical support.
