Audi A6 Power Steering Rack 2000-2004

Audi A6 C5 (4B) Platform Fitment

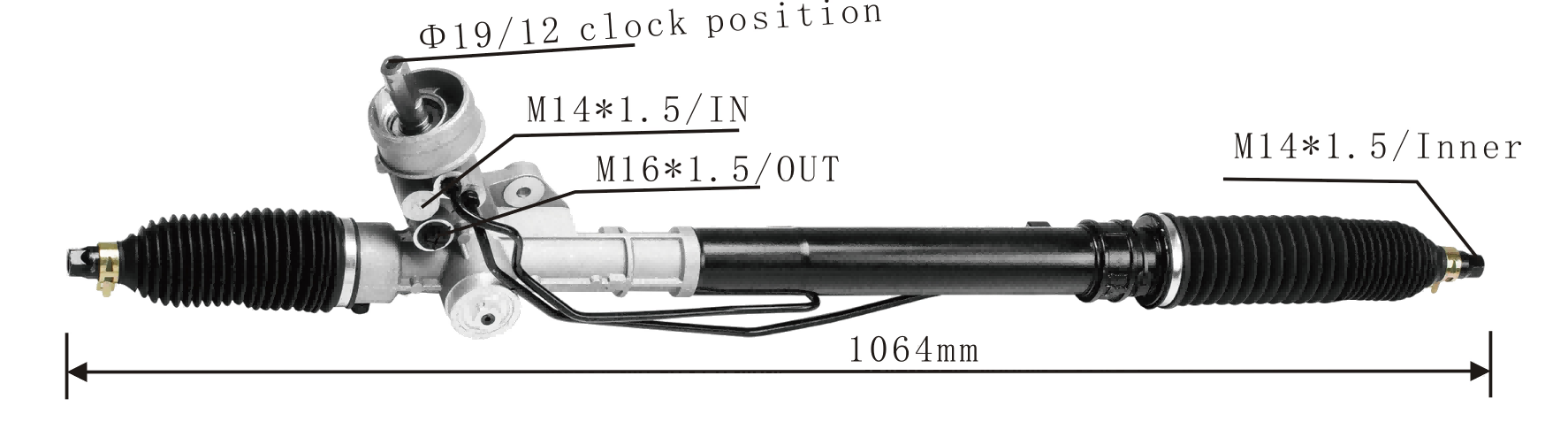

This hydraulic power steering rack (OE 4B1422066A) is designed for the Audi A6 C5 platform, internally coded "4B" by Audi, covering the model years 2000 through 2004. The C5 A6 was Audi's executive sedan offering during this period, featuring a longer wheelbase and heavier body than the A4, which necessitated a steering rack with different valve calibration to provide appropriate assist levels. This rack fits the A6 sedan, Avant (wagon), and the allroad quattro variant. Engine compatibility includes the 2.4L V6, 2.7T twin-turbo V6, 3.0L V6, and the 4.2L V8 — all gasoline versions. The 2.5 TDI V6 diesel also uses this rack.

C5 A6 — A Bigger Car Needs a Bigger Rack

The Audi A6 C5 is significantly larger and heavier than the A4 B6, weighing approximately 200-300 kg more depending on specification. To handle this additional weight, the 4B1422066A steering rack has a higher-flow valve body that delivers greater hydraulic assist at low speeds compared to the A4 rack. The rack housing is also physically longer to accommodate the wider track width of the A6 platform. These differences mean that A4 and A6 steering racks are NOT interchangeable despite both being Audi products — the mounting bolt patterns, pressure line fitting positions, and overall dimensions are all different.

The Allroad Quattro Special Case

The Audi allroad quattro (2000-2005) shares the C5 A6 platform and uses this same steering rack. However, allroad owners should be aware that the vehicle's adjustable air suspension system can change ride height by up to 60mm, which affects the steering geometry. After replacing the steering rack on an allroad, the suspension should be set to its standard (middle) ride height position before performing the four-wheel alignment. Aligning at a different ride height will result in incorrect toe and caster angles at normal driving height.

Heavy Vehicle Steering Rack Stress Factors

The Audi A6 C5 places significantly more stress on its steering rack than lighter vehicles due to its weight, wide tires, and the front-heavy weight distribution caused by the longitudinally mounted engine. Owners of 2.7T and 4.2L models report the highest failure rates, likely because these powerful engines are most often driven enthusiastically, putting additional cornering loads on the steering system. The most common failure mode on high-mileage C5 A6 models is not a dramatic leak but rather a gradual increase in steering effort and a "lumpy" or notchy feel when turning slowly — this indicates internal valve body wear rather than a seal failure. Unlike a seal leak that can sometimes be nursed along with fluid top-ups, valve body wear will only worsen over time and should be addressed promptly.

Complementary Parts to Replace

Given the age of 2000-2004 Audi A6 models, we recommend replacing several related components simultaneously to achieve a complete steering system refresh. The power steering pressure hose (particularly the rubber-to-metal transition fitting) is a known weak point and should be inspected for cracking. The steering column universal joint can develop play after 15+ years, which mimics rack play — check by grabbing the intermediate shaft and attempting to rotate it while the steering wheel is locked. The power steering cooler (a small radiator mounted in front of the main radiator) can become internally restricted with age, reducing fluid flow and causing the pump to work harder. Replacing these items during a rack swap adds minimal labor since they are already accessible.

Step-by-Step Replacement Overview

1. Disconnect the battery negative terminal and wait 5 minutes for the airbag system to de-energize. 2. Raise the vehicle on a lift or jack stands and remove both front wheels. 3. Drain the power steering system by disconnecting the return hose at the reservoir. 4. Disconnect the outer tie rod ends from the steering knuckles. 5. Remove the steering column intermediate shaft pinch bolt and separate the shaft from the rack pinion. 6. Disconnect the pressure and return hydraulic lines from the rack — have drain pans positioned to catch residual fluid. 7. Remove the two rack mounting bracket bolts (18mm socket). 8. Slide the rack assembly toward the driver's side and remove it through the wheel arch. 9. Transfer the inner tie rods and mounting brackets to the new rack if reusing. 10. Install in reverse order, torque all fasteners to specification, bleed the system, and perform a four-wheel alignment.

KITLAMT — Global Steering Parts Partner

KITLAMT has been producing steering system components for Audi vehicles since our founding in 2013. Our product range covers the A3, A4, A6, A8, Q5, Q7, and TT model lines, with over 500 Audi-specific SKUs in our catalog. We export to auto parts distributors in 50+ countries, with particular strength in South American, Middle Eastern, and African markets where Audi vehicles have strong aftermarket demand. Our 12-month warranty and responsive WhatsApp-based technical support have made us a preferred supplier for many importers.
