Toyota Hilux 2015- 2WD Hydraulic Power Steering Rack

Toyota Hilux 2015- 2WD (variant) — Hydraulic Power Steering (HPS) Overview

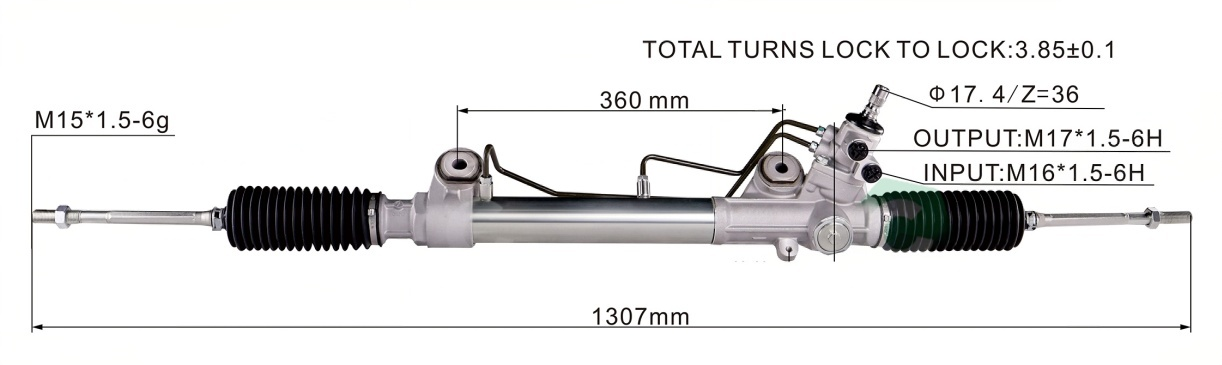

The Toyota Hilux 2015- 2WD (variant) (OE 44200-0K650) is a hydraulic power steering (hps) designed for Toyota Hilux (AN120/AN130) 2WD models produced from 2015-2024. This is a left-hand drive (LHD) variant. This steering unit is manufactured to OE specifications and provides precise, responsive steering feel for 2.4L 2GD-FTV, 2.7L 2TR-FE engine variants. At KITLAMT, we produce this hydraulic power steering (hps) with strict quality control, ensuring every unit meets or exceeds the original equipment standard.

Our hydraulic power steering (hps) for the Toyota Hilux 2015- 2WD (variant) undergoes rigorous testing including pressure cycling (100,000+ cycles), salt spray resistance (500+ hours), and dimensional verification against the OE reference. Each unit is individually bench-tested for leaks, steering effort, and return-to-center performance before shipping.

Compatible Vehicles — Toyota Hilux (AN120/AN130) 2WD and Related Models

This hydraulic power steering (hps) is confirmed to fit the following vehicles:

• Hilux (AN120/AN130) 2WD — 2015-2024 production

Engine compatibility: 2.4L 2GD-FTV, 2.7L 2TR-FE

Drive side: LHD

Fitment notes: 2WD variant with specific tie rod end configuration. Verify OE number suffix for exact fitment.

OE Number Cross-Reference — Toyota Hilux 2015- 2WD (variant)

The following OE numbers are cross-referenced for this hydraulic power steering (hps):

When comparing OE numbers, check the complete number including suffix letters. Toyota often uses updated part numbers that supersede older versions.

Hydraulic Power Steering System — Technical Details

The Toyota Hilux 2015- 2WD (variant) uses a conventional hydraulic power steering system. The rack-and-pinion mechanism converts rotational steering wheel input into linear motion of the tie rods. Hydraulic pressure from the engine-driven pump assists this movement, reducing driver effort.

The hydraulic circuit includes the steering rack, high-pressure hoses, return lines, reservoir, and vane pump. The rack contains a rotary valve that directs hydraulic fluid to the appropriate side of the piston based on steering direction.

Installation Guide — Toyota Hilux 2015- 2WD (variant)

Installing the hydraulic power steering (hps) on a Toyota Hilux (AN120/AN130) 2WD:

1. Vehicle preparation: Raise the vehicle on jack stands. Disconnect the negative battery terminal. Place a drain pan under the steering rack.
2. Remove wheels: Remove both front wheels. Disconnect the inner tie rod ends using a tie rod separator tool.
3. Disconnect steering column: Remove the pinch bolt at the column-to-rack coupling. Mark the position before removal.
4. Disconnect hydraulics: Using a line wrench, disconnect the high-pressure and return hoses. Cap the ends.
5. Remove old rack: Slide the rack out through the wheel well.
6. Prepare new rack: Transfer inner tie rod ends and boots. Compare with old unit.
7. Install new rack: Slide into position, reconnect column coupling, torque pinch bolt (25 Nm). Reconnect hydraulic hoses with new O-rings.
8. Reassemble: Reconnect tie rod ends, install wheels. Fill reservoir with ATF Dexron III. Bleed by turning lock-to-lock 10-15 times.
9. Final check: Verify center position. Check for leaks. Four-wheel alignment recommended.

Common Symptoms — Toyota Hilux (AN120/AN130) 2WD

• Power steering fluid leak: Fluid pooling under the front axle area indicates seal failure.
• Steering play: More than 2-3cm of free play indicates worn tie rod ends or bushings.
• Clunking: Metallic clunk when turning or over bumps points to worn ball joints or loose mounting bolts.
• Uneven tire wear: Inner or outer edge wear indicates alignment issues from a worn rack.
• Whining noise: Low-speed whining indicates low fluid or failing pump.

Quality Assurance — KITLAMT Toyota Hydraulic Power Steering (HPS)

• Material verification: High-grade aluminum alloy housing with hardened steel rack gear.
• Pressure testing: Tested at 1.5× maximum operating pressure for 60 seconds.
• Dimensional inspection: Critical dimensions verified using CMM.
• Functional testing: Bench-tested for steering effort and return-to-center.
• Packaging: Sealed, foam-protected, reinforced carton.

Why Choose KITLAMT for Toyota Hydraulic Power Steering Parts

• Factory direct pricing: 30-50% savings vs dealer parts.
• OE-matched quality: ISO 9001 & IATF 16949 certified.
• Comprehensive catalog: Toyota steering parts from 1989 to present.
• Global logistics: FCL/LCL via sea, air, express. 3-7 day lead time.
• Technical support: OE cross-reference and installation guidance.
