Hydraulic Power Steering Rack for Compact & Subcompact Vehicles

KITLAMT is a professional steering rack manufacturer and supplier in China, providing OE-quality steering systems for global aftermarket distributors.

This hydraulic power steering (HPS) rack assembly is designed as a universal-fit replacement for compact and subcompact passenger cars. Engineered with precision gear-to-rack mesh and high-quality sealing components, this unit delivers smooth, responsive steering feel that matches original equipment performance. The compact design and standardized mounting points make it suitable for a wide range of small vehicles from Japanese, Korean, and European manufacturers.

Compact and subcompact vehicles place unique demands on steering systems. Their lighter curb weight means less inertia to overcome, but the smaller steering wheel and shorter wheelbase require more precise gear ratios for comfortable city driving. This steering rack is optimized for these characteristics, providing light steering effort at parking speeds while maintaining good road feel at highway speeds.

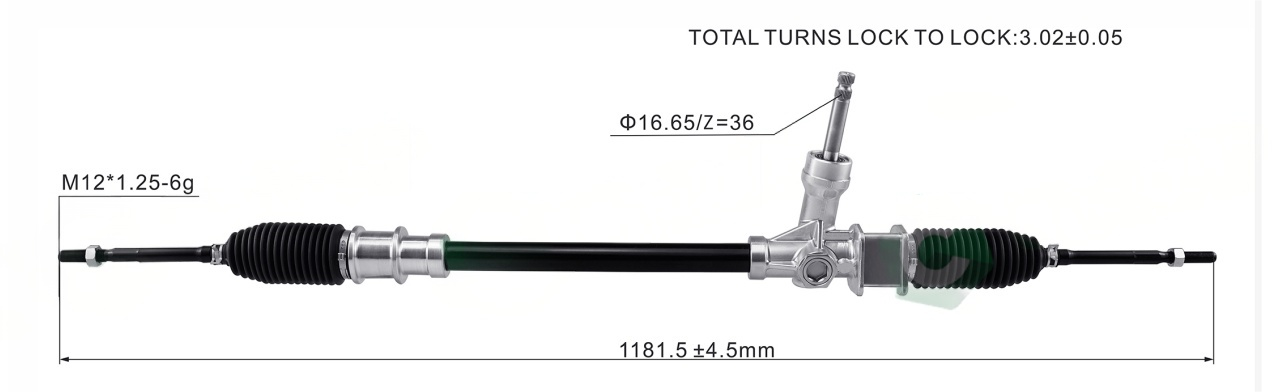

Technical Specifications

Ideal Applications

This steering rack is designed for compact and subcompact passenger cars. Common vehicle segments that use this type of steering rack include:

• Subcompact hatchbacks: Vehicles in the A and B segments (e.g., Toyota Yaris, Hyundai i20, VW Polo, Ford Fiesta)
• Compact sedans: C-segment vehicles (e.g., Toyota Corolla, Honda Civic, Nissan Sentra, Mazda 3)
• Small crossovers: Subcompact SUVs and crossovers (e.g., Hyundai Kona, Nissan Juke, Ford EcoSport)
• City cars: Micro and mini cars (e.g., Toyota Aygo, Hyundai i10, Fiat 500)

Compatibility note: This is a universal-fit steering rack designed for compact vehicles. To confirm compatibility with your specific vehicle, please provide: (1) your vehicle make, model, and year; (2) the OE number from your original steering rack; (3) photos of your original unit showing mounting points and connections. Our technical team will verify the match before you order.

Key Features

• Precision gear mesh: The rack and pinion teeth are machined to tight tolerances (backlash less than 0.05mm), ensuring precise steering response with no dead spot at center
• Quality seals: FKM (Viton) fluoroelastomer seals resist ATF fluid degradation and maintain sealing performance across the full temperature range
• Hardened rack bar: The rack bar is induction-hardened to HRC 58-62 surface hardness for long wear life, while maintaining a tough, ductile core
• Corrosion-resistant housing: The aluminum alloy housing is anodized for superior corrosion resistance, suitable for vehicles operating in coastal or winter road salt environments
• Direct-fit design: Standardized mounting dimensions and connection points minimize the need for modifications during installation
• 100% tested: Every unit is pressure-tested and leak-checked before shipping to ensure zero defects

Installation Guide

1. Raise the vehicle and support it securely on jack stands. Never work under a vehicle supported only by a jack
2. Place a drain pan under the steering rack area to catch any spilled hydraulic fluid
3. Disconnect the power steering pressure and return lines from the rack. Use line wrenches to avoid rounding the fittings
4. Remove the cotter pins and castle nuts from both tie rod ends. Use a tie rod separator tool to disconnect the tie rods from the steering knuckles
5. Disconnect the steering intermediate shaft from the rack input shaft. Mark the relative position before disassembly
6. Remove the rack mounting bolts (typically 2-4 bolts, 14-17mm). Note the position of any brackets, bushings, or spacers
7. Carefully extract the old rack from the vehicle. On compact cars, this is usually possible from below without removing the engine subframe
8. Transfer the tie rod ends from the old rack to the new one, counting the number of exposed threads to maintain approximate toe alignment
9. Install the new rack in the reverse order of removal. Torque all bolts to manufacturer specifications
10. Reconnect the pressure and return lines using new O-rings or crush washers
11. Reconnect the steering intermediate shaft and torque the pinch bolt to specification
12. Reconnect the tie rod ends to the steering knuckles and install new cotter pins
13. Fill the power steering reservoir with the correct type of ATF fluid
14. Bleed the system: with the engine off, turn the steering wheel slowly lock-to-lock 15-20 times to expel air. Top off fluid as needed
15. Start the engine and continue bleeding by turning the wheel lock-to-lock 5 more times with the engine running
16. Check for leaks at all connections. Top off fluid to the correct level
17. Perform a four-wheel alignment to correct toe settings after the installation

Common Symptoms of a Failing Steering Rack

• Power steering fluid leaks: Puddles of red or brown fluid under the front of the vehicle, especially near the center. The most common leak points are the end seals and the input shaft seal
• Steering play or looseness: Excessive free play in the steering wheel (more than 50mm at the rim) caused by worn rack and pinion teeth or worn bushings
• Steering pull: The vehicle pulls to one side during driving, caused by uneven rack wear or internal valve malfunction
• Steering noise: Clunking, knocking, or grinding noises when turning, especially at low speeds. Often caused by worn bushings or internal component damage
• Heavy steering: Increased steering effort, particularly at low speeds. May indicate internal seal failure causing pressure loss, or a failing power steering pump
• Steering wheel not returning: After a turn, the steering wheel doesn't return to center on its own, indicating excessive internal friction in the rack

Maintenance Recommendations

Proper maintenance significantly extends the life of your hydraulic steering rack:

• Power steering fluid change: Replace the power steering fluid every 40,000 km or 2 years. Use the manufacturer-recommended ATF type (typically Dexron III or equivalent)
• Bellows boot inspection: Check the rack bellows (dust boots) every 20,000 km for cracks, tears, or deterioration. A torn boot allows dirt and moisture to enter the rack, causing rapid seal and gear wear
• Fluid level check: Check the power steering fluid level monthly. Consistently low fluid indicates a leak that should be addressed immediately
• Tie rod end inspection: During tire rotations, have the tie rod ends checked for play. Worn tie rod ends cause steering imprecision and uneven tire wear
• Avoid full-lock holding: Don't hold the steering wheel at full lock for more than 5 seconds. This puts maximum pressure on the system and can damage seals

Frequently Asked Questions

Q: How do I know if this rack fits my vehicle?

A: This steering rack is designed for compact and subcompact vehicles. To confirm fitment, please provide your vehicle's make, model, year, and engine size, along with the OE number from your original steering rack. You can find the OE number stamped on the rack housing or on a label on the unit. Our technical team will verify compatibility before you place your order.

Q: Do I need a four-wheel alignment after installation?

A: Yes, a four-wheel alignment is strongly recommended after replacing the steering rack. Even small changes in the rack position affect the front toe angle, which directly impacts tire wear and directional stability. Most tire shops can perform this alignment for a modest cost.

Q: What type of power steering fluid should I use?

A: Most compact vehicles with hydraulic power steering use Dexron III or Dexron VI ATF. However, some manufacturers specify their own fluid type. Always check your owner's manual or the power steering reservoir cap for the correct specification. Using the wrong fluid can damage seals and cause leaks.

Q: How long does installation take?

A: For a professional mechanic, the steering rack replacement typically takes 2-3 hours on a compact vehicle. For a DIY mechanic with intermediate skills and proper tools, expect 3-5 hours. The most time-consuming step is usually the wheel alignment afterward.

Q: What's included with the steering rack?

A: The steering rack assembly includes the rack housing, rack bar, pinion gear, internal seals, and bellows boots. Tie rod ends are NOT included and should be transferred from your original rack or replaced separately with new ones.

For more information or to confirm compatibility, contact our technical team. Browse our full range of steering rack assemblies and power steering pumps.
