Hydraulic Power Steering Rack for Mid-Size Sedans & SUVs

KITLAMT is a professional steering rack manufacturer and supplier in China, providing OE-quality steering systems for global aftermarket distributors.

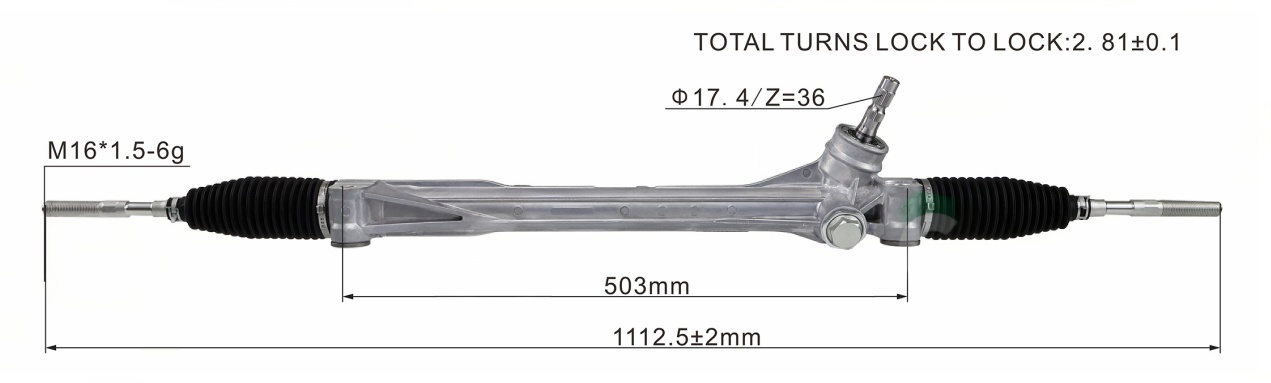

This hydraulic power steering (HPS) rack assembly is engineered as a replacement unit for mid-size sedans, crossovers, and SUVs. Built with reinforced components to handle the increased weight and steering loads of larger vehicles, this rack delivers consistent, reliable steering performance throughout its service life. The heavy-duty construction and precision machining make it suitable for vehicles ranging from 1,400 kg to 2,200 kg curb weight.

Mid-size and larger vehicles place significantly higher demands on steering systems compared to compact cars. The heavier curb weight requires more steering torque, the larger tires generate more friction force, and the higher center of gravity (in SUVs) creates greater dynamic loads during cornering. This steering rack is designed to handle these demands with reinforced housing, larger-diameter rack bar, and upgraded seal materials that maintain performance under sustained high-pressure operation.

Technical Specifications

Ideal Applications

This steering rack is designed for mid-size and upper-compact vehicles. Common vehicle segments include:

• Mid-size sedans: D-segment vehicles (e.g., Toyota Camry, Honda Accord, Nissan Altima, VW Passat, Mazda 6)
• Compact crossovers: Vehicles based on compact sedan platforms with raised ride height (e.g., Toyota RAV4, Honda CR-V, Nissan Rogue, Hyundai Tucson)
• Mid-size SUVs: Larger SUVs and crossovers (e.g., Toyota Highlander, Honda Pilot, Nissan Pathfinder, Ford Edge)
• Minivans and MPVs: Family vehicles (e.g., Toyota Sienna, Honda Odyssey, Chrysler Pacifica)
• Pickup trucks (light duty): Some light-duty pickup trucks use similar steering rack designs (verify fitment)

Compatibility note: To confirm compatibility with your specific vehicle, please provide: (1) your vehicle make, model, and year; (2) the OE number from your original steering rack; (3) photos showing the mounting points and connections. Our technical team will verify the match.

Key Features

• Reinforced construction: The housing and rack bar are sized for the higher loads of mid-size vehicles, with thicker walls and larger-diameter components compared to compact-car racks
• High-pressure seals: Double-lip FKM seals rated for continuous operation at up to 14 MPa, providing reliable leak-free performance even under the sustained high pressures of heavy-vehicle steering
• Hardened alloy rack: SAE 8620 alloy steel rack bar with vacuum carburized surface (case depth 0.6-0.8mm) for superior wear resistance under high-load conditions
• Variable-ratio option: Some applications feature variable-ratio rack design that provides quicker steering response near center (for highway stability) and slower response at the extremes (for parking ease)
• Corrosion protection: The housing features multi-layer corrosion protection: anodized aluminum or electrocoated iron, with additional zinc-nickel plating on steel components
• 100% tested: Every unit undergoes high-pressure leak testing (1.5x rated pressure), gear mesh verification, and steering effort measurement before shipping

Installation Guide

1. Raise the vehicle and support it securely on jack stands rated for the vehicle's weight. Mid-size SUVs may require a floor jack with higher capacity
2. Place a drain pan under the steering rack area
3. Disconnect the power steering pressure and return lines. Use line wrenches and be prepared for more fluid volume than compact cars (the system typically holds 1.5-2 liters)
4. Remove the tie rod end cotter pins and castle nuts. Separate the tie rods from the steering knuckles using a proper separator tool
5. Disconnect the steering intermediate shaft or rag joint from the rack input shaft. Mark the position for reassembly
6. Remove the rack mounting bolts (typically 2-4 bolts, 14-19mm). On some mid-size vehicles, the rack is bolted to the engine subframe and may require lowering the subframe for removal
7. Extract the old rack. On SUVs, clearance may be tight — you may need to disconnect one side of the subframe or remove the engine splash shield for access
8. Transfer the tie rod ends to the new rack, maintaining the approximate thread count for toe alignment
9. Install the new rack. Torque all mounting bolts to manufacturer specifications (typically 60-100 Nm for mid-size vehicles)
10. Reconnect the pressure and return lines with new O-rings or crush washers. Use line wrenches and torque to specification
11. Reconnect the steering shaft and torque the pinch bolt
12. Reconnect the tie rod ends and install new cotter pins
13. Fill the reservoir with the correct ATF type. Mid-size vehicles typically require 1.5-2 liters for a complete fill
14. Bleed the system: turn the wheel lock-to-lock 20 times with the engine off, then 5 times with the engine running. Top off fluid as needed
15. Check all connections for leaks
16. Perform a four-wheel alignment

Common Symptoms of a Failing Steering Rack

• Fluid leaks: Red or brown puddles under the center/front of the vehicle. Leaks are more common on mid-size vehicles due to the higher operating pressures
• Steering play: Excessive free play in the steering wheel caused by worn rack teeth or bushings. More noticeable on larger vehicles due to the longer steering linkage
• Steering pull: Vehicle drifts to one side, caused by uneven rack wear or internal valve issues. May be confused with alignment problems — check the rack first
• Heavy steering: Increased effort at low speeds, especially when parking. May indicate seal failure, low fluid, or a failing pump
• Noise when turning: Clunking or groaning noises, often caused by worn bushings, loose mounting bolts, or internal damage
• Steering wheel kickback: The steering wheel jerks or kicks when hitting bumps, indicating worn rack bushings or excessive internal clearance

Maintenance Recommendations

• Power steering fluid change: Every 40,000 km or 2 years. Mid-size vehicles with higher steering loads benefit from more frequent fluid changes
• Bellows boot inspection: Check every 15,000 km. The larger boots on mid-size racks are more susceptible to damage from road debris
• Fluid level check: Monthly. Mid-size vehicles use more fluid and leaks develop faster due to higher pressures
• Power steering pump inspection: Every 50,000 km. The pump works harder on heavier vehicles — check for noise, leaks, and flow rate
• Tie rod end inspection: Every tire rotation. Heavier vehicles wear tie rod ends faster

Frequently Asked Questions

Q: Will this fit my Toyota Camry / Honda CR-V / [specific model]?

A: This steering rack is designed as a universal-fit unit for mid-size vehicles. To confirm fitment for your specific vehicle, please provide the OE number from your original rack and photos of the mounting points. Our team will verify compatibility before you order.

Q: My SUV has electronic power steering. Is this rack compatible?

A: No. This is a hydraulic power steering rack. If your vehicle has electric power steering (EPS), you need an EPS-compatible rack without the hydraulic valve body. Check your owner's manual or look for a power steering fluid reservoir under the hood — if there's no reservoir, your vehicle likely has EPS.

Q: Can I use synthetic power steering fluid?

A: Yes, synthetic ATF (such as Dexron VI or equivalent) provides better protection and longer life than conventional fluid, especially in vehicles that experience high steering loads or extreme temperatures.

Q: How do I know if I need a new rack or just new tie rod ends?

A: If the steering play is accompanied by fluid leaks or heavy steering, the rack likely needs replacement. If the play is only in the tie rod ends (test by grabbing the front wheel at 3 and 9 o'clock and rocking it), replacing just the tie rod ends may be sufficient.

For more information or to confirm compatibility, contact our technical team. Browse our full range of steering rack assemblies and power steering pumps.
