Nissan NV200 2009- MSG

EPS Motor/Sensor Gear for Nissan NV200 2009-

The Nissan NV200 2009- is a well-regarded vehicle, but like all cars with hydraulic steering systems, the EPS motor will eventually need replacement after years of service.

Across the 2009-present production run, the Nissan NV200 2009- was equipped with several steering system variants depending on whether the vehicle was LHD or RHD, and whether it had a manual or power steering setup. This EPS motor with OE reference 48001-JX00A matches the power steering configuration. Always verify the number on your existing part before purchasing.

This EPS motor is compatible with the following OE reference numbers:

• 48001-JX00A
• 48001-JX00B
• 48001-JX00C
• 48001-3LT0A

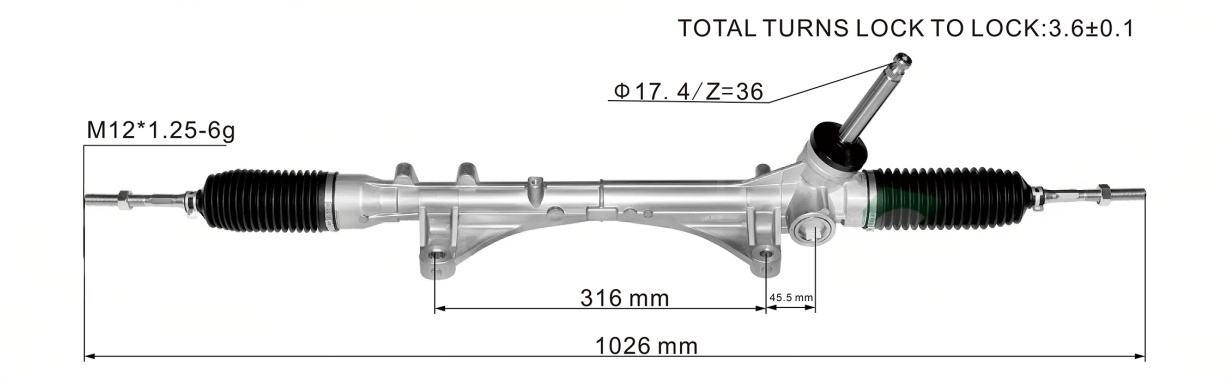

Technical Data

Compatible Vehicles

This EPS motor is designed for the following application:

• Nissan NV200 2009- (2009-present) — LHD configuration

To confirm this is the correct part for your Nissan NV200 2009-, verify that the OE number on your existing EPS motor matches 48001-JX00A. This number is typically stamped on a metal tag attached to the housing or engraved directly into the component body.

Note: Nissan NV200 2009- vehicles produced in different markets may use different steering system configurations. Always cross-reference the OE number for guaranteed fitment.

Common Failure Symptoms

The Nissan NV200 2009- is generally a robust vehicle, but the EPS motor is a high-wear component that will eventually show its age. Watch for these indicators:

• Fluid leaks: Reddish or brown power steering fluid pooling under the front of the vehicle, usually near the driver-side wheel well. On the Nissan NV200 2009-, leaks commonly originate from the rack end seals where the inner tie rods connect.
• Steering wheel vibration: Vibration felt through the steering column, often worsening at specific speeds. On the Nissan NV200 2009-, this can be mistaken for wheel balance issues but actually originates from a worn rack.
• Grinding or clunking noises: A metallic clunk when driving over bumps or a grinding noise during turns indicates worn internal bushings or gear teeth in the Nissan NV200 2009-'s steering rack.
• Heavy steering at low speed: Parking and tight maneuvers become noticeably harder. The Nissan NV200 2009- may feel like the power steering is intermittently failing, especially during the first few minutes of driving in cold weather.
• Vehicle pulling to one side: Even after a wheel alignment, the Nissan NV200 2009- drifts left or right, suggesting uneven internal resistance in the steering rack assembly.

If your Nissan NV200 2009- exhibits any combination of these symptoms, have the EPS motor inspected by a qualified mechanic. Continuing to drive with a compromised steering system risks further damage and poses a serious safety hazard.

Maintenance Tips for Nissan NV200 2009- Steering Components

Proper maintenance can significantly extend the life of the EPS motor on your Nissan NV200 2009-. Here are practical tips based on our experience supplying steering components for this platform:

• Check power steering fluid regularly. On hydraulic Nissan NV200 2009- models, the fluid level should be checked monthly. Low fluid accelerates wear on the pump and rack seals. Use only the fluid type specified in the owner's manual — mixing different fluid types can cause seal degradation.
• Inspect steering boots. The rubber boots (bellows) at each end of the EPS motor protect the internal components from dirt and water. On the Nissan NV200 2009-, these boots are exposed to road spray and can crack after 5-7 years. Torn boots are the number one cause of premature EPS motor failure.
• Avoid holding the steering at full lock. When the Nissan NV200 2009-'s steering is turned to maximum in either direction, the power steering system is at peak pressure. Holding this position for more than a few seconds — common during parking maneuvers — stresses the pump and rack seals unnecessarily.
• Address alignment issues promptly. If your Nissan NV200 2009- pulls to one side or the steering wheel is off-center when driving straight, get an alignment done immediately. Misalignment forces the EPS motor to work harder and accelerates internal wear.
• Use quality replacement parts. When it is time to replace the EPS motor on your Nissan NV200 2009-, choose a reputable brand like KITLAMT that uses OE-grade materials and provides a meaningful warranty. Budget parts may save money upfront but often fail within 12-18 months.

Why Choose KITLAMT for Your Nissan NV200 2009-

Unlike many aftermarket suppliers, KITLAMT does not simply re-box generic parts. Each EPS motor for the Nissan NV200 2009- is tooled specifically for that application, with mounting points, thread pitches, and spline counts verified against the original OE unit. This attention to detail means our parts fit exactly as the factory intended.

• OE-specification manufacturing — every EPS motor matches the original Nissan NV200 2009- unit in fit and function
• 12-month warranty — comprehensive coverage against manufacturing defects
• Global shipping — express delivery to 200+ countries via DHL, FedEx, and UPS
• Technical support — our team can help verify compatibility and troubleshoot installation issues
• Competitive pricing — direct from manufacturer pricing with no middleman markup

Installation Guide

If you are planning to have the EPS motor replaced on your Nissan NV200 2009-, here is what the job involves. This overview is for reference only — always consult the factory service manual for torque specifications and safety procedures.

1. Step 1: Lift the front of the Nissan NV200 2009- and secure it on jack stands. Remove both front wheels to access the steering components.
2. Step 2: Disconnect the outer tie rod ends from the steering knuckles using a tie rod separator. Mark the position of the tie rods on the old rack to help with alignment later.
3. Step 3: Place a drain pan beneath the steering rack area. Disconnect the high-pressure and return hydraulic lines from the rack. Be prepared for power steering fluid to drain.
4. Step 4: Remove the mounting bolts securing the steering rack to the subframe. On the Nissan NV200 2009-, there are typically 2-4 bolts accessible from underneath.
5. Step 5: Carefully maneuver the old steering rack out through the wheel well or subframe opening. On some Nissan NV200 2009- variants, you may need to slightly lower the subframe on one side for clearance.
6. Step 6: Transfer the inner tie rods and boots from the old rack to the new KITLAMT unit if they are not pre-installed. Ensure the boots are properly seated to prevent contamination.
7. Step 7: Install the new KITLAMT EPS motor in the reverse order of removal. Torque all mounting bolts to the manufacturer's specification.
8. Step 8: Reconnect the hydraulic lines using new O-rings. Fill the power steering reservoir with the recommended fluid for the Nissan NV200 2009-.
9. Step 9: Bleed the system by turning the steering wheel lock-to-lock with the engine running, checking for leaks at each connection point.
10. Step 10: A four-wheel alignment is mandatory after replacing the EPS motor on the Nissan NV200 2009-. This ensures proper toe settings and prevents premature tire wear.

Important: After installing the new EPS motor on your Nissan NV200 2009-, always perform a four-wheel alignment and verify there are no fluid leaks before driving the vehicle on public roads.

Frequently Asked Questions

Q: Is this the same as the dealer part for my Nissan NV200 2009-?

A: This is an aftermarket replacement manufactured to OE specifications. It is functionally identical to the dealer part — same fit, same performance, same quality materials — but sold under the KITLAMT brand at a significantly lower price point.

Q: What if the OE number on my current EPS motor is different from 48001-JX00A?

A: If your existing part has a different OE number, it may be a different steering system variant. Contact our team with your OE number and we will cross-reference it. We stock multiple variants for most Nissan NV200 2009- applications and can identify the correct one for your specific vehicle.

Q: Do you offer a core exchange program for Nissan NV200 2009- parts?

A: We do not currently offer a core exchange program. KITLAMT EPS motor units are brand new, not rebuilt. This means there is no core charge and no need to return your old part, simplifying the ordering process.

Q: What power steering fluid should I use after installing this EPS motor?

A: For hydraulic Nissan NV200 2009- models, consult the owner's manual for the recommended fluid specification. Most Nissan NV200 2009- vehicles use ATF Dexron III or a dedicated power steering fluid. Do not mix different fluid types, and always flush the system if you are unsure what fluid was previously used.

Q: How is the EPS motor packaged for international shipping?

A: Each Nissan NV200 2009- EPS motor is wrapped in anti-rust film, secured with foam inserts in a double-wall corrugated box, and sealed with heavy-duty tape. We have shipped over 500,000 steering components internationally with a damage rate below 0.1%.
