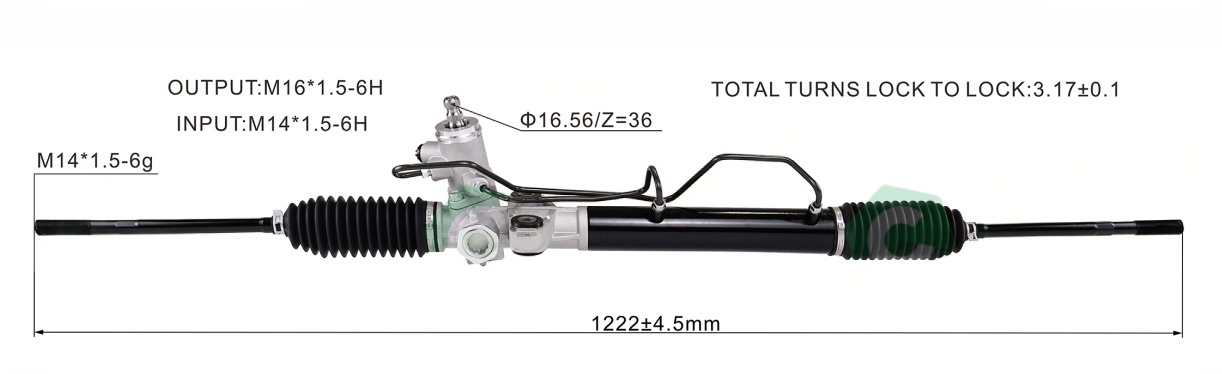

Matrix FC1-10 G4GB Hydraulic Power Steering Rack

Premium Hydraulic Power Steering (HPS) Rack for the Matrix Matrix FC\01-10 G4GB

KITLAMT is a professional steering rack manufacturer and supplier in China, providing OE-quality steering systems for global aftermarket distributors.

Our replacement HPS rack is engineered to meet or exceed OEM specifications for the Matrix Matrix FC\01-10 G4GB. Manufactured with precision-machined components and premium-grade materials, this steering part delivers reliable performance and long-lasting durability. With OE reference number(s) 57710-17200, this unit is a direct-fit replacement that requires no modifications to your vehicle's existing steering system.

Whether you're replacing a worn-out steering rack due to fluid leaks, excessive play, or noise during turns, our HPS rack provides smooth, responsive steering feel identical to the factory-original component. Each unit undergoes rigorous quality testing including pressure testing, seal integrity verification, and road-simulation trials before shipping.

Technical Specifications

• Part Type: Hydraulic Power Steering (HPS) Rack
• OE Number(s): 57710-17200
• Steering Position: Front
• Drive Side: LHD (Left-Hand Drive) — also compatible with RHD models where specified
• Construction Material: High-strength steel housing with corrosion-resistant coating
• Seal Type: Double-lip Teflon seals for superior leak prevention
• Operating Pressure: Up to 1500 PSI (standard hydraulic system pressure)
• Fluid Compatibility: ATF Dexron III / Dexron VI power steering fluid
• Rack Ratio: Variable-ratio for precise on-center feel
• Tie Rod Ends: Included (pre-assembled for easier installation)
• Warranty: 12 months / unlimited mileage

This hydraulic steering rack features a rack-and-pinion design with integrated power assist. The hydraulic pressure is generated by the vehicle's power steering pump and directed through precision-machined internal passages to provide smooth, consistent steering assistance at all speeds.

Vehicle Compatibility

This HPS rack is designed as a direct replacement for the following vehicles:

• Matrix Matrix FC\01-10 G4GB All model years

Important: Always verify the OE number on your existing steering component before ordering. The OE number is typically stamped on the housing of the steering rack or on a metal tag attached to the unit. If you're unsure about compatibility, contact our technical support team with your VIN (Vehicle Identification Number) and we'll confirm the correct part for your vehicle.

This part is compatible with both left-hand drive (LHD) and right-hand drive (RHD) configurations unless otherwise noted. Please check the product description for specific market compatibility.

Symptoms of a Failing Hydraulic Steering Rack

Recognizing the early warning signs of steering rack failure can prevent costly repairs and ensure your safety on the road. If you notice any of the following symptoms in your Matrix Matrix FC\01-10 G4GB, it may be time to replace your steering rack:

• Power Steering Fluid Leaks: Red or brown fluid puddles under the front of your vehicle, often near the steering rack area. Leaking seals are the most common cause of hydraulic steering rack failure.
• Steering Wheel Play: Excessive free play or looseness in the steering wheel, requiring constant corrections to keep the vehicle straight. This indicates worn internal components.
• Grinding or Whining Noise: Unusual noises when turning the steering wheel, especially at low speeds. This can indicate worn bearings, damaged seals, or low power steering fluid.
• Stiff or Heavy Steering: Increased effort required to turn the wheel, particularly during parking maneuvers. This may indicate internal leakage reducing hydraulic pressure.
• Steering Wheel Not Returning to Center: After completing a turn, the steering wheel doesn't naturally return to the straight-ahead position. This suggests binding in the rack mechanism.
• Vehicle Pulling to One Side: The vehicle drifts or pulls to one side during straight-line driving, even after wheel alignment. This can be caused by uneven internal wear in the steering rack.
• Uneven Tire Wear: Premature or irregular tire wear patterns, particularly on the front tires, often indicate steering geometry issues caused by a worn steering rack.

If you experience two or more of these symptoms simultaneously, we strongly recommend inspecting your steering system immediately. A failing steering rack compromises vehicle control and poses a serious safety risk.

OEM vs. Aftermarket: Why Choose Our HPS rack?

When replacing a steering component, vehicle owners often face the choice between expensive OEM dealer parts and aftermarket alternatives. Here's why our HPS rack offers the best value:

Our steering components are manufactured in ISO/TS 16949-certified facilities using the same raw materials and manufacturing processes as OE suppliers. Each unit is tested to withstand 100,000+ cycles of operation, meeting or exceeding the durability standards set by the original equipment manufacturer.

We source our components directly from tier-1 automotive suppliers who also manufacture for major OE brands. This means you get OE-quality parts without the OE price tag or dealership markup.

Installation Guide for Hydraulic Steering Rack

Replacing a hydraulic steering rack requires intermediate mechanical skills and approximately 2-4 hours. We recommend having a professional mechanic perform this installation if you're not comfortable with steering system work.

Tools Required:

• Floor jack and jack stands (4 recommended)
• Socket set (metric and standard)
• Flare nut wrenches for hydraulic line fittings
• Tie rod end separator (pickle fork or press tool)
• Power steering fluid (ATF Dexron III or as specified by vehicle manufacturer)
• Drain pan for old fluid
• Torque wrench
• Penetrating oil (for rusted bolts)

Step-by-Step Installation:

1. Prepare the Vehicle: Park on a level surface. Disconnect the negative battery terminal. Raise the vehicle and support it securely on jack stands. Remove the front wheels.
2. Drain Power Steering Fluid: Place a drain pan under the steering rack. Disconnect the power steering fluid lines from the rack using flare nut wrenches. Allow the fluid to drain completely.
3. Disconnect Tie Rod Ends: Remove the cotter pins and castle nuts from the tie rod ends. Use a tie rod separator tool to disconnect the tie rod ends from the steering knuckles. Mark the position of the tie rods for reference during reassembly.
4. Disconnect Steering Shaft: Locate the steering shaft coupling (universal joint) connecting the steering column to the rack. Remove the pinch bolt and disconnect the shaft from the rack input.
5. Remove Mounting Bolts: Remove the bolts securing the steering rack to the subframe or chassis. Support the rack with one hand while removing the last bolt to prevent it from falling.
6. Remove Old Rack: Carefully maneuver the old steering rack out of the vehicle. You may need to lower the subframe slightly or work the rack around other components.
7. Install New Rack: Position the new steering rack in the vehicle and hand-thread the mounting bolts. Torque the mounting bolts to the manufacturer's specifications (typically 65-85 ft-lbs).
8. Reconnect Components: Reconnect the steering shaft coupling and torque the pinch bolt to spec. Reconnect the tie rod ends to the steering knuckles and torque the castle nuts. Install new cotter pins.
9. Reconnect Fluid Lines: Attach the power steering pressure and return lines to the new rack. Use new O-ring seals if provided. Torque the fittings to specification.
10. Fill and Bleed System: Fill the power steering reservoir with the specified fluid. With the engine off, turn the steering wheel lock-to-lock 15-20 times to bleed air from the system. Check the fluid level and add as needed. Start the engine and repeat the process until no air bubbles appear in the reservoir.
11. Final Steps: Reinstall the front wheels. Lower the vehicle. Perform a test drive at low speed to verify proper steering operation. Check for leaks. We strongly recommend a professional wheel alignment after installation.

Pro Tip: Before installing the new rack, compare it side-by-side with the old unit to ensure the tie rod threads, mounting bolt locations, and fluid line fittings match exactly. This 5-minute check can save hours of frustration.

Frequently Asked Questions

How long does a hydraulic steering rack last?

With proper maintenance, a hydraulic steering rack typically lasts 80,000 to 150,000 miles (130,000 to 240,000 km). Regular power steering fluid changes every 50,000 miles significantly extend the lifespan. Environmental factors like extreme temperatures and road salt can reduce longevity.

Do I need to replace the power steering pump when replacing the rack?

Not necessarily. If the power steering pump is functioning normally (no whining, adequate pressure), it can remain in service. However, if the pump has been running with contaminated fluid or shows signs of wear, replacing both components simultaneously is recommended to protect your new steering rack.

Is a wheel alignment required after replacing the steering rack?

Yes, a professional wheel alignment is strongly recommended after any steering rack replacement. Even slight differences in tie rod positioning can cause alignment issues, leading to uneven tire wear and poor handling. Most alignment shops can complete this service in 30-60 minutes.

What type of power steering fluid should I use?

Refer to your vehicle's owner's manual for the specific fluid type. Most Matrix vehicles use ATF Dexron III or Dexron VI. Some European-spec vehicles may require CHF 11S or a specific synthetic fluid. Never mix different types of power steering fluid.

Can I install this steering rack myself?

If you have intermediate mechanical skills and the proper tools, yes. However, this job involves working under the vehicle with heavy components and handling hydraulic fluids. If you're not confident in your abilities, we recommend professional installation. The most critical steps are proper torque specifications and thorough system bleeding.

What's included with my purchase?

Your order includes the complete steering rack assembly with pre-installed tie rod ends (where applicable), new mounting hardware, and installation instructions. Power steering fluid and alignment services are not included.
