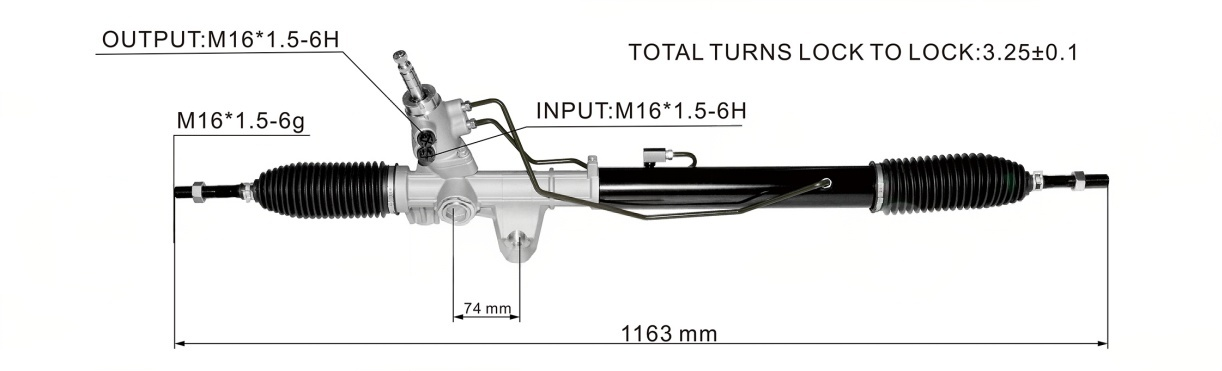

Kia Grand HPS Rack 57700-A9100 KL-YX8714

Vehicle Fitment & Details

Reference 57700-A9100 is catalogued for a Grand Carnival Hydraulic Power Steering Rack from 2014. A Kia service bulletin also names 57700 A9100 as the hydraulic steering rack used in a 2015MY Sedona (YP) repair procedure. This official cross-reference explains the regional model-name connection without resolving every vehicle automatically.

Product data card

Site application	Kia Grand Carnival 2014-on Hydraulic Power Steering Rack
OE identifier	57700-A9100
Catalogue SKU	KL-YX8714
Steering mode	Hydraulic power steering
Related official name	Sedona (YP) in Kia technical material

Evidence-matching order

Full OE first	Read 57700-A9100 in full rather than identifying the rack from A9100 alone.
Platform next	Record YP or other platform information to separate generations sharing a model name.
Sales market	Explain whether the vehicle is labelled Grand Carnival or Sedona and where it was sold.
Steering position	Aftermarket data lists an LHD hydraulic unit; RHD cannot be inferred from this page.

The site record begins in 2014, while the Kia bulletin uses 2015MY Sedona. Market model-year conventions can differ, so build date and VIN remain important.

Vehicle-behaviour review

Intermittent assistance	Record engine speed, temperature and frequency, then test fluid condition and pump output.
Drops after parking	Map the drop location and clean before retesting to separate pipe, pump and rack sources.
Steering remains after a turn	Check alignment, tyres, column movement and resistance through the rack.
Front-subframe noise	Inspect mounting, tie rods and suspension instead of assigning every noise to the steering gear.

Confirmation and workshop record

Identity package	Last eight VIN characters, build month, market model name, engine, drive side and OE photo.
Detailed images	Input spline, hydraulic connections, brackets and both outer directions.
Repair method	Use the correct regional manual for wheel restraint, fluid, bleeding and tightening.
Retained checks	Record fluid specification, leak inspection, steering centre and alignment result.

Questions about A9100

Why does Sedona appear in the evidence?	It is a related market model name and assists cross-checking; VIN and OE still govern.
Do 2014 and 2015MY conflict?	Not necessarily. Regional model-year labelling may differ at launch.
Is 57700A9100 without a hyphen valid?	It is a common catalogue format, but the label and assembly must still match.
