Honda Accord 2008- Hydraulic Power Steering Rack

Hydraulic Power Steering Rack for Honda Accord 2008-

The Honda Accord 2008- (2008-present) relies on a properly functioning hydraulic steering rack for responsive steering and safe road handling.

The Honda Accord 2008- was produced 2008-present and sold across multiple markets worldwide. During production, several steering system revisions were made depending on the engine variant and market specification. This particular hydraulic steering rack corresponds to OE reference 53601-TA0-003, which covers the most common configuration. Before ordering, we recommend confirming the OE number stamped on your existing unit to guarantee a perfect match.

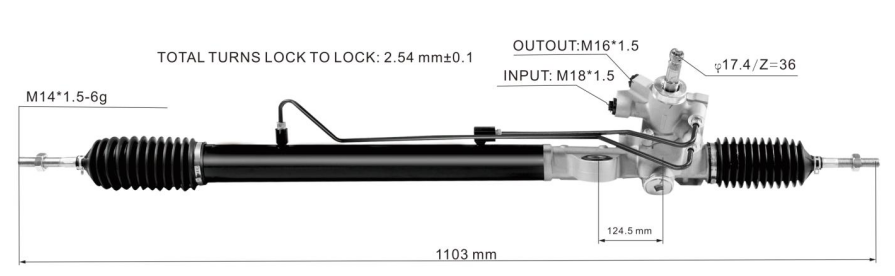

Technical Data

Compatible Vehicles

This hydraulic steering rack is designed for the following application:

• Honda Accord 2008- (2008-present) — LHD configuration

To confirm this is the correct part for your Honda Accord 2008-, verify that the OE number on your existing hydraulic steering rack matches 53601-TA0-003. This number is typically stamped on a metal tag attached to the housing or engraved directly into the component body.

Note: Honda Accord 2008- vehicles produced in different markets may use different steering system configurations. Always cross-reference the OE number for guaranteed fitment.

Common Failure Symptoms

A deteriorating hydraulic steering rack on the Honda Accord 2008- typically announces itself through a combination of the following symptoms. Recognizing these early can prevent secondary damage to tires, tie rods, and other suspension components.

• Uneven tire wear: The front tires on the Honda Accord 2008- show accelerated wear on one edge, a telltale sign that the toe angle is off due to steering rack play.
• Grinding or clunking noises: A metallic clunk when driving over bumps or a grinding noise during turns indicates worn internal bushings or gear teeth in the Honda Accord 2008-'s steering rack.
• Vehicle pulling to one side: Even after a wheel alignment, the Honda Accord 2008- drifts left or right, suggesting uneven internal resistance in the steering rack assembly.
• Heavy steering at low speed: Parking and tight maneuvers become noticeably harder. The Honda Accord 2008- may feel like the power steering is intermittently failing, especially during the first few minutes of driving in cold weather.
• Steering wheel vibration: Vibration felt through the steering column, often worsening at specific speeds. On the Honda Accord 2008-, this can be mistaken for wheel balance issues but actually originates from a worn rack.

If your Honda Accord 2008- exhibits any combination of these symptoms, have the hydraulic steering rack inspected by a qualified mechanic. Continuing to drive with a compromised steering system risks further damage and poses a serious safety hazard.

Steering System Overview for the Honda Accord 2008-

The Honda Accord 2008- (2008-present) uses a Hydraulic Power Steering Rack system that is integral to the vehicle's handling characteristics. The steering system on this model consists of several interconnected components: the steering wheel and column transfer driver input to the hydraulic steering rack, which converts rotational motion into the lateral movement needed to turn the front wheels. The inner and tie rod ends connect the hydraulic steering rack to the steering knuckles, while the power steering fluid (in hydraulic systems) or electric motor (in EPS systems) provides the assist needed to reduce steering effort.

On the Honda Accord 2008-, the hydraulic steering rack is mounted to the front subframe and sits behind the engine, protected by a splash shield. Over time, road debris, moisture, and thermal cycling take their toll on the seals and internal components. Most Honda Accord 2008- owners can expect the original hydraulic steering rack to last between 100,000 and 200,000 kilometers, depending on driving conditions and maintenance habits.

Regular inspection of the steering system on your Honda Accord 2008- can catch problems early. We recommend having the hydraulic steering rack checked during every tire rotation or brake service. A mechanic can detect early seal leaks, boot damage, and excessive play before they lead to more expensive repairs or unsafe driving conditions.

Why Choose KITLAMT for Your Honda Accord 2008-

Every KITLAMT hydraulic steering rack for the Honda Accord 2008- is manufactured in our Guangzhou facility using CNC-machined alloy steel housings and Japanese-specification NOK seals. We pressure-test each unit to 150% of operating pressure before it leaves the factory, which is why we can confidently offer a 12-month warranty on every part we sell.

• OE-specification manufacturing — every hydraulic steering rack matches the original Honda Accord 2008- unit in fit and function
• 12-month warranty — comprehensive coverage against manufacturing defects
• Global shipping — express delivery to 200+ countries via DHL, FedEx, and UPS
• Technical support — our team can help verify compatibility and troubleshoot installation issues
• Competitive pricing — direct from manufacturer pricing with no middleman markup

Installation Guide

Replacing the hydraulic steering rack on a Honda Accord 2008- (2008-present) is a job best left to a qualified mechanic, but understanding the process helps you communicate effectively with your repair shop and verify the work is done correctly.

1. Step 1: Lift the front of the Honda Accord 2008- and secure it on jack stands. Remove both front wheels to access the steering components.
2. Step 2: Disconnect the outer tie rod ends from the steering knuckles using a tie rod separator. Mark the position of the tie rods on the old rack to help with alignment later.
3. Step 3: Place a drain pan beneath the steering rack area. Disconnect the high-pressure and return hydraulic lines from the rack. Be prepared for power steering fluid to drain.
4. Step 4: Remove the mounting bolts securing the steering rack to the subframe. On the Honda Accord 2008-, there are typically 2-4 bolts accessible from underneath.
5. Step 5: Carefully maneuver the old steering rack out through the wheel well or subframe opening. On some Honda Accord 2008- variants, you may need to slightly lower the subframe on one side for clearance.
6. Step 6: Transfer the inner tie rods and boots from the old rack to the new KITLAMT unit if they are not pre-installed. Ensure the boots are properly seated to prevent contamination.
7. Step 7: Install the new KITLAMT hydraulic steering rack in the reverse order of removal. Torque all mounting bolts to the manufacturer's specification.
8. Step 8: Reconnect the hydraulic lines using new O-rings. Fill the power steering reservoir with the recommended fluid for the Honda Accord 2008-.
9. Step 9: Bleed the system by turning the steering wheel lock-to-lock with the engine running, checking for leaks at each connection point.
10. Step 10: A four-wheel alignment is mandatory after replacing the hydraulic steering rack on the Honda Accord 2008-. This ensures proper toe settings and prevents premature tire wear.

Important: After installing the new hydraulic steering rack on your Honda Accord 2008-, always perform a four-wheel alignment and verify there are no fluid leaks before driving the vehicle on public roads.

Frequently Asked Questions

Q: Will this hydraulic steering rack fit my Honda Accord 2008- exactly?

A: Yes, this hydraulic steering rack is designed as a direct bolt-on replacement for the Honda Accord 2008- (2008-present). It matches OE reference 53601-TA0-003 in all critical dimensions including mounting points, spline count, thread pitch, and overall length. No modifications or adapters are needed for installation.

Q: How does KITLAMT quality compare to the original Honda part?

A: KITLAMT hydraulic steering rack units are manufactured to the same dimensional tolerances and material specifications as the original equipment. We use equivalent-grade alloy steel, the same seal specifications, and pressure-test every unit before shipping. The main difference is the price — KITLAMT parts are typically 40-60% less expensive than dealer parts.

Q: What warranty comes with this hydraulic steering rack?

A: Every KITLAMT hydraulic steering rack is covered by a 12-month warranty against manufacturing defects. If the part fails under normal use within the warranty period, we will ship a replacement at no charge. Warranty claims are processed within 48 hours of notification.

Q: Can I install this hydraulic steering rack myself on my Honda Accord 2008-?

A: While experienced home mechanics with a full tool set can complete this job, we strongly recommend professional installation. The Honda Accord 2008-'s steering system is a safety-critical assembly, and improper installation can result in dangerous driving conditions. A wheel alignment is also required after installation, which requires professional equipment.

Q: How long will this hydraulic steering rack last on my Honda Accord 2008-?

A: Under normal driving conditions, a KITLAMT hydraulic steering rack on the Honda Accord 2008- should last 100,000-150,000 kilometers or more. Longevity depends on driving habits, road conditions, and whether the steering boots are kept in good condition. Avoiding full-lock steering hold and maintaining proper fluid levels will maximize lifespan.
